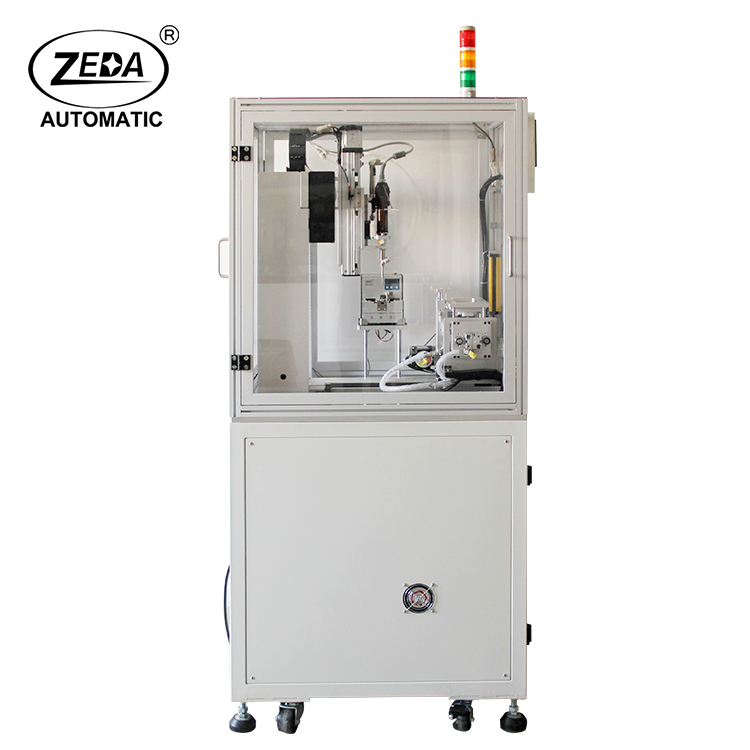

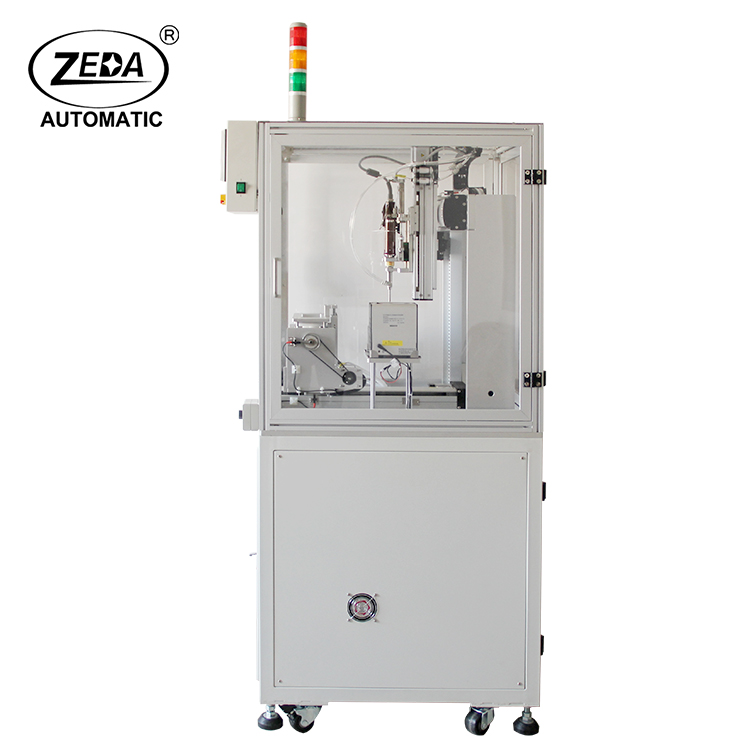

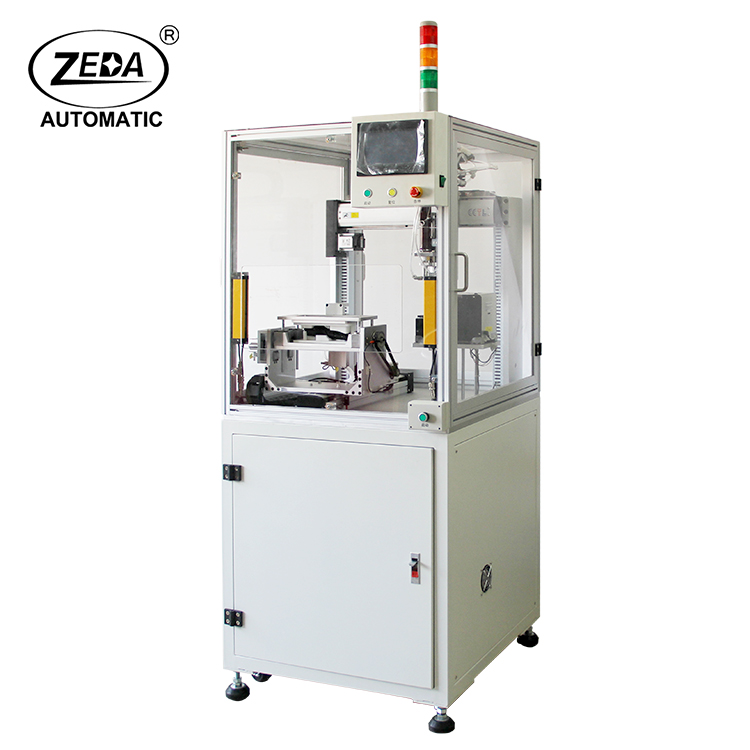

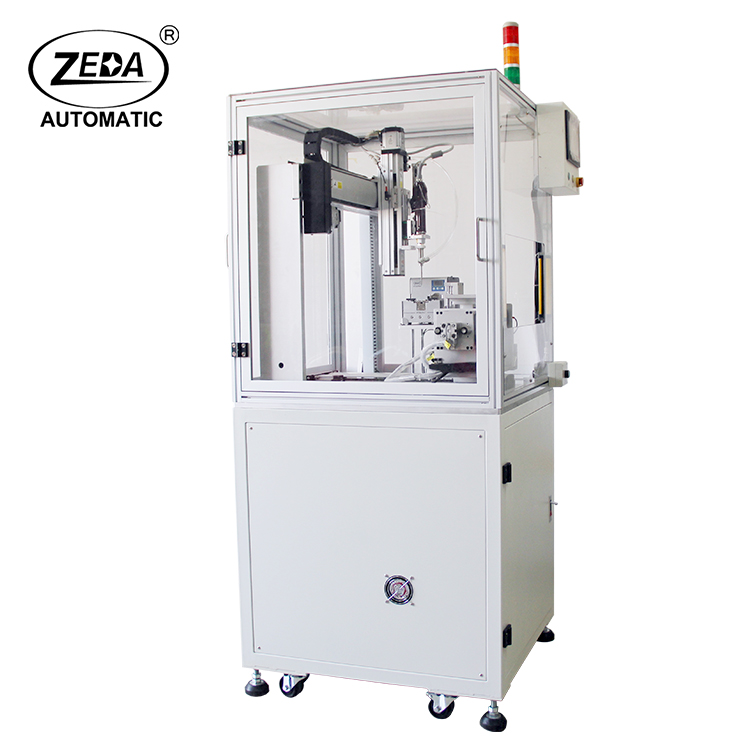

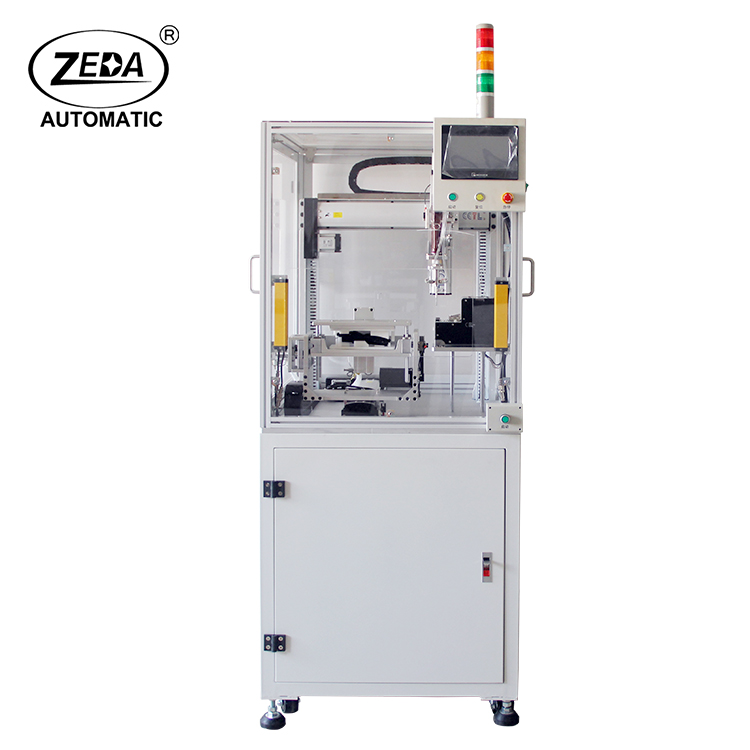

FTR-T11 Floor standing single Y single Z automatic locking platform

Product parameters

Number of operators: 1

Control unit: PLC

Applicable screws: M1.0-M6.0

Number of locks: 50

Weight: 300kg

Number of workstations: 1 PCS

Power: 400W

Operating area: protective type

Operation interface: touch screen

Number of electric batch machines: 1 PCS

Number of feeders: 1 PCS

Material collection method: vacuum suction/blowing type

Defect rate: below 0.1%

Accuracy: ± 0.02mm

Power supply: AC220V 50Hz

Efficiency: 1.0-1.5S/piece

Electric screwdriver torque: selected according to screws

Alarm items: floating height, sliding teeth, missing locks

External dimensions: 700 * 760 * 1700mm

Product size: 220 * 60 * 30mm

Air source: 0.4-0.8MPA/oil free drying

Speed: X/Y/Z 800/800/800mm/s

Power: stepper motor (servo motor needs to be customized)

Transmission method: precision synchronous belt (ball screw needs to be customized)

Operation mode: forward placement, forward retrieval, can lock both front and back positions

Face screws
