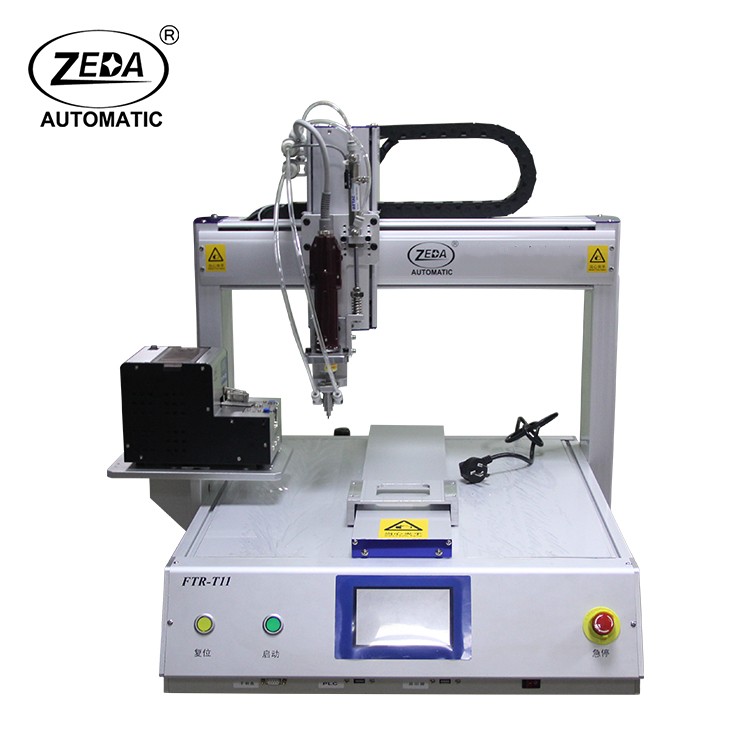

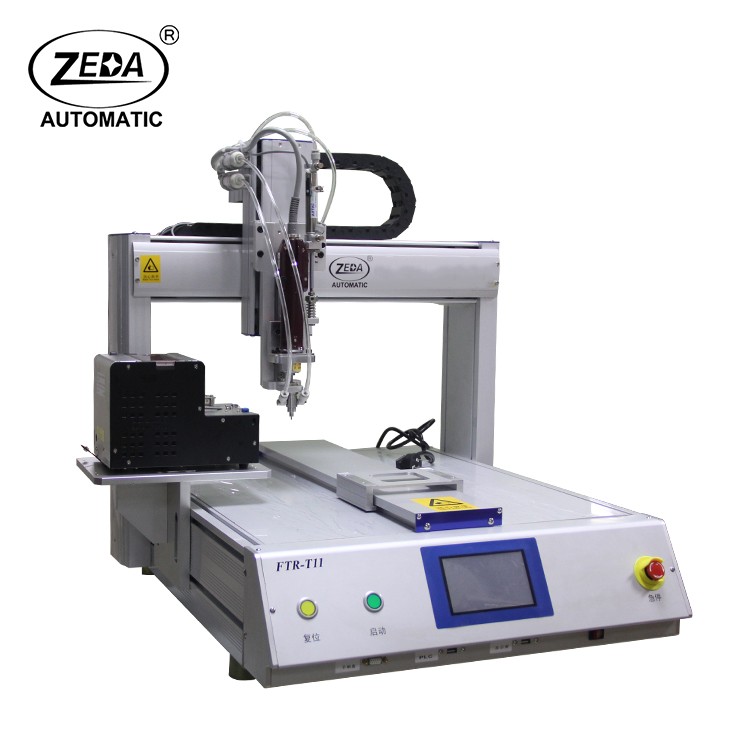

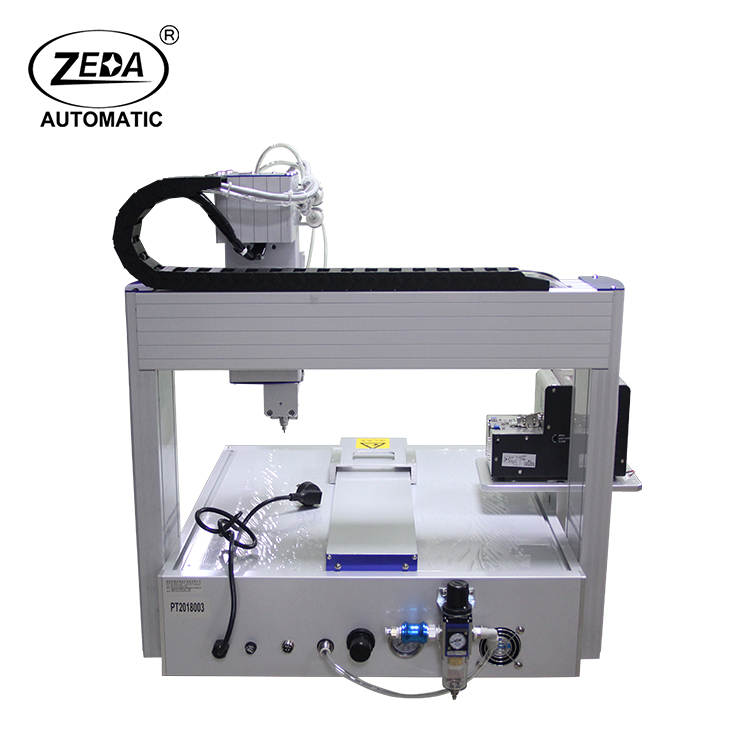

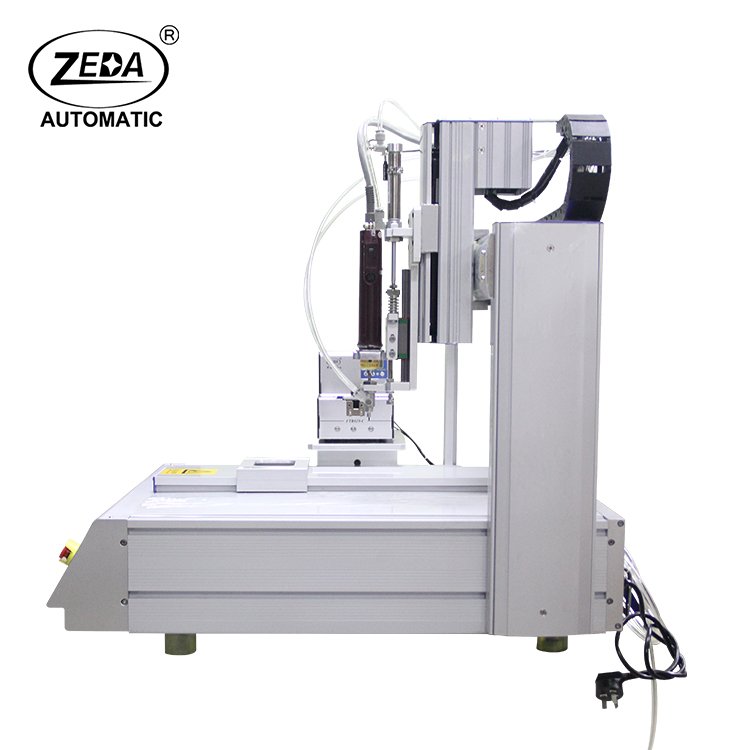

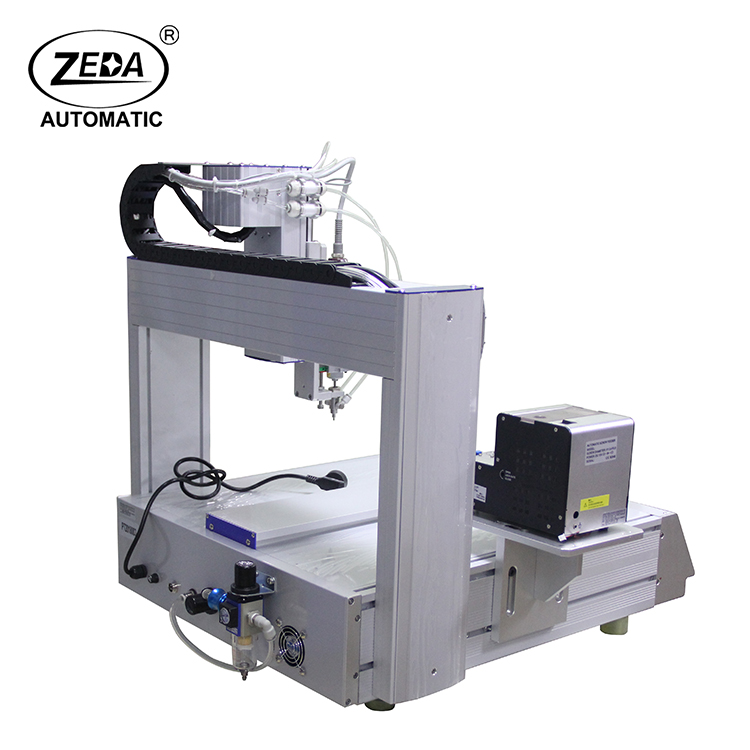

FTR-T11 Single Y Single Z Automatic Lock Platform

1. There are two ways to adsorb screws: magnetic adsorption and vacuum adsorption;
2. Suitable for mobile phones, digital products, electronic small devices, and small household appliances;
3. Suitable for the vast majority of screws, with strong versatility and no requirement for the aspect ratio of screws;
4. Can replace manual labor for specific screw locking operations, achieving mechanized production; Reduce the labor intensity of workers; Traditional manual placement of screws and alignment of screw heads require a significant amount of work time and effort;
5. It does not need to be paired with an external computer for standalone operation and convenient installation; Easy to operate and set up, employees can quickly grasp the operation and debugging, high-speed positioning is accurate, and one person can manage several machines at the same time, saving labor;
在线咨询
咨询热线:15914149941

产品简介/ Product introduction

Product parameters

Operation interface: touch screen

Operating area: protective type

Machine gross weight: approximately 60kg

Material collection method: vacuum suction/blowing type

Rack: Aluminum alloy rack

Screw defective product: alarm prompt

Power supply: AC220V 50Hz

Operating speed: uniform speed 800mm/s

Alarm items: floating height, sliding teeth, missing locks

External dimensions: 784 * 745 * 680mm

Power: stepper motor (servo motor needs to be customized)

Transmission method: precision synchronous belt (ball screw needs to be customized)

Positioning accuracy: less than X, Y: ± 0.05mm Z: ± 0.05mm

Effective travel: 500 * 400 * 80 (X * Y * Z) customizable
